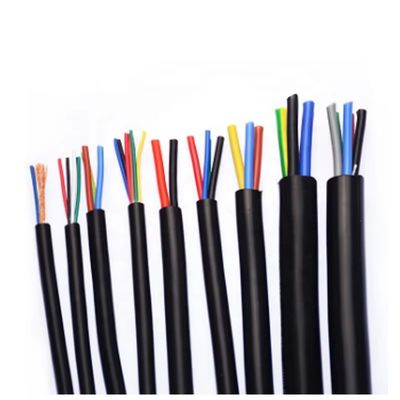

6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications

  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
Luogo di origine Guangdong, Cina
Marca Mysun
Numero di modello UL4330
Quantità di ordine minimo 1

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale del conduttore Rame Materiale isolante Di gomma, gomma di silicone
Tensione nominale 300 v Tipo di conduttore Bloccato
Valutazione della temperatura 150 °C Dimensione del conduttore 14awg, 16awg, 18awg
Conteggio core 6, 7, 8 Diametro del conduttore 1,17 mm, 1,47 mm, 1,89 mm
Spessore dell'isolamento 0,45 mm, 0,55 mm Max Resistance 5.50-10,00 Ω/km
Lunghezza dell'unità 305/610 metri Costruzione 7/0,39, 7/0,49, 41/0,254
Spessore nominale 0,45 mm, 0,55 mm Diametro isolamento ≥0,40 mm
Lunghezza d'imballaggio 305/610 metri
Evidenziare

6 Core Silicone Insulated Wire

,

7 Core Multicore Wire

,

8 Core Silicone Rubber Wire
Lasciate un messaggio
Descrizione di prodotto
6 Core 7 Core 8 Core 14AWG 16AWG 18AWG UL Standard Silicone Insulated Multicore Wire
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies. Top Silicone Rubber Wire Supplier in China.
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 0 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 1
UL4330 Specifications
Conductor Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Cond. Resistance (Ω/KM) Unit Length (M)/(Ft)
2×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
2×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
2×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
3×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
3×16 7/0.34 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
3×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
4×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 6.00-7.50
4×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.50-8.00
4×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.50-10.00
Multi-core silicone cables can be customized upon request

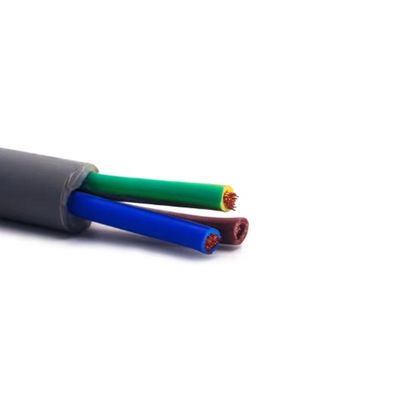

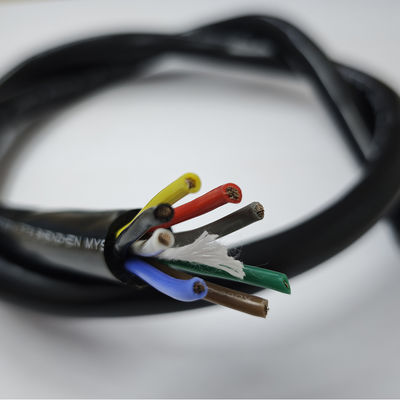

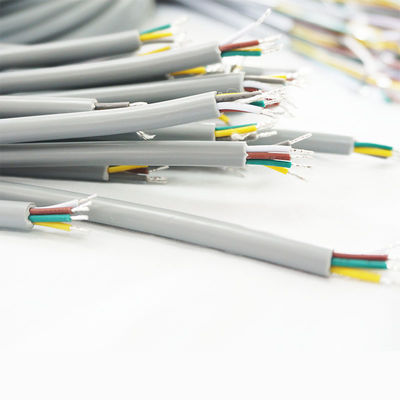

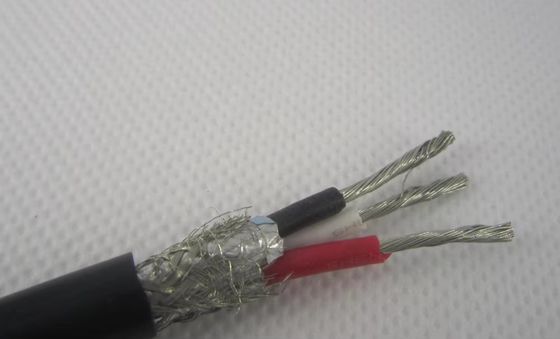

Product Gallery
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 2 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 3 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 4 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 5 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 6 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 7

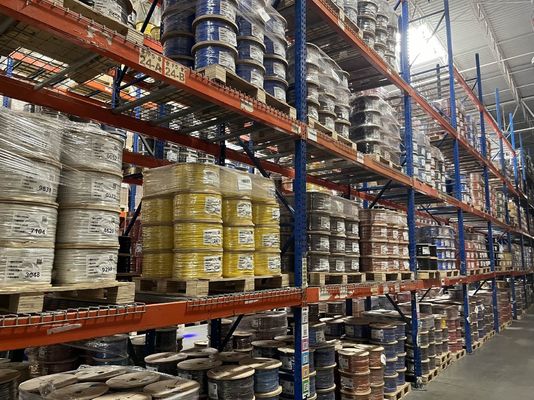

Company Profile
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 8 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 9
Our Overseas Clients
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 10
Exhibition
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 11
Certifications
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 12
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
