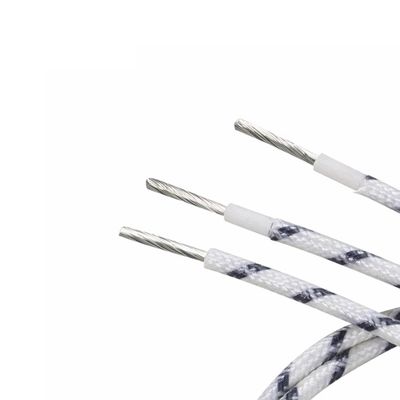

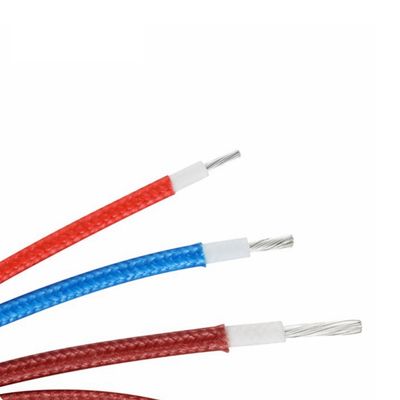

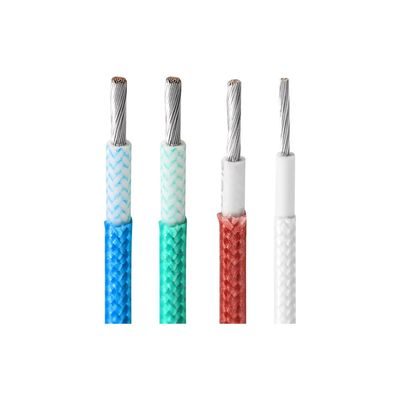

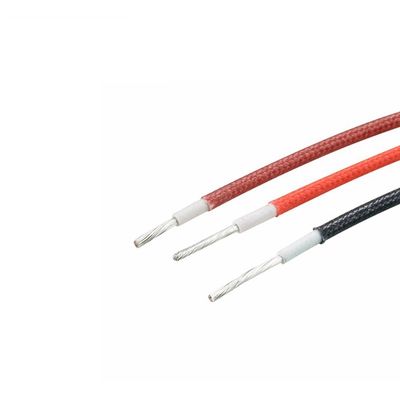

UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use

  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
Luogo di origine Guangdong, Cina
Marca MYSUN
Certificazione ROHS/CCC/VDE/CCC/ISO9001:2008
Numero di modello UL3122-0.3mm
Quantità di ordine minimo 3050
Prezzo $0.08-0.16

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale del conduttore Rame Materiale isolante Gomma silicone
Tensione nominale 300 v Tipo di conduttore Bloccato
Forma Girare Temperatura massima 200c
Diametro del conduttore 0,48-1,49 mm Spessore dell'isolamento 0,60-0,65 mm
Diametro del filo 1,68-2,69 mm Resistenza del conduttore 14,00-143,00 Ω/km
Lunghezza dell'unità 305 metri/rotolo Dimensione awg 16-26
Costruzione del conduttore 7/0,16 a 50/0,18 Finitura del conduttore Rame in scatola
Tipo di isolamento Gomma
Evidenziare

300V Silicone Insulated Wire

,

200C High Temperature Wire

,

18 AWG Silicone Rubber Insulated Wire
Lasciate un messaggio
Descrizione di prodotto
UL3122 Silicone Fiberglass Braided Wire 300V 18 AWG 20 AWG High Temperature Heating Cables
High-quality silicone fiberglass braided wire designed for home appliances and industrial applications requiring high temperature resistance up to 200°C.
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 0 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 1 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 2
Specifications
Conductor Insulation Max. Cond. Resistance (Ω/KM) Unit Length (M)(Ft)
Size (AWG): 26
Construction: 7/0.16
Diameter: 0.48mm		 Nominal Thickness: 0.60mm
Diameter: 1.68mm		 143.00 305/1000
Size (AWG): 24
Construction: 7/0.20
Diameter: 0.61mm		 Nominal Thickness: 0.60mm
Diameter: 1.81mm		 89.30 305/1000
Size (AWG): 22
Construction: 7/0.254
Diameter: 0.77mm		 Nominal Thickness: 0.60mm
Diameter: 1.97mm		 56.40 305/1000
Size (AWG): 20
Construction: 7/0.31
Diameter: 0.94mm		 Nominal Thickness: 0.60mm
Diameter: 2.14mm		 35.20 305/1000
Size (AWG): 18
Construction: 7/0.39
Diameter: 1.19mm		 Nominal Thickness: 0.60mm
Diameter: 2.39mm		 22.20 305/1000
Product Features
  • Place of Origin: China, Guangdong
  • Type: Insulated wire with silicone rubber insulation
  • Application: Home appliances, lighting, heaters, motors, generators, industrial power
  • Conductor Material: Tinned copper (stranded)
  • Color options: Accept customized colors
  • Usage: High temperature electric furnace heating
  • Rated Voltage: 300V
  • Rated Temperature: 200°C
  • Package: 305 meter/roll
  • Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in high temperature wires for home appliances, electronic products, lighting, medical units, and communication equipment. Our products meet UL, CUL, VDE and SGS certifications and comply with ISO9001 international standards.
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 3 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 4 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 5

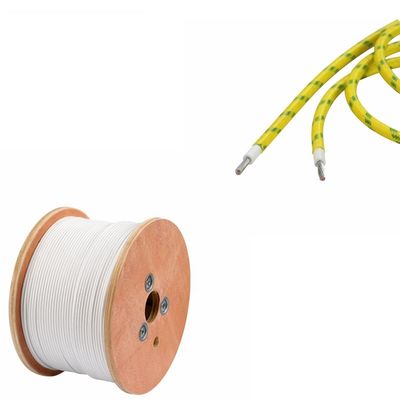

Packing
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 6
Applications
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 7
Frequently Asked Questions
How can I contact your company?
We are available via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We observe public holidays during May 1-3, October 1-7, and Chinese New Year.
Do you provide free samples?
Yes, we provide free samples for testing, but buyers must cover all shipping costs.
What are your payment terms?
We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and Paypal.
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
