UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C

  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Luogo di origine Guangdong, Cina
Marca MYSUN
Numero di modello UL20225
Quantità di ordine minimo 3050

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale conduttore Rame in scatola Opzioni di diametro 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Materiale isolante PFA Tensione nominale 600v
Tipo di conduttore Solido Forma Girare
Valutazione della temperatura 250°C Tipo Isolato
Materiale della treccia Rame nichelato Spessore nominale 0.30mm
Spessore della treccia 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Spessore dell'indumento esterno 0.51mm
Costruzione 19/0,15, 19/0,19, 19/0,235 Costruzione della treccia 16X6X012, 16X7X012, 24X6X0.12, 24X8X0.12, 24X10X0.12
Opzioni di lunghezza 305 m/1.000 piedi
Evidenziare

Nickel Plated Copper Braid PFA Wire

,

High Temperature PFA Wire

,

UL20225 Multi Core Wire
Lasciate un messaggio
Descrizione di prodotto

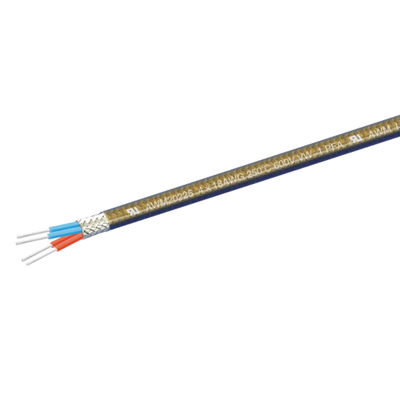

UL20225 PFA Multi Core Wire 600V 250°C Nickel Plated Copper Braid 2X18 - 7X22 High Temperature PFA Wire for UAV Robot
Premium PFA Wire Supplier for Industrial Applications

Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 0 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 1
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter Range (mm)
2X2219/0.150.750.3016X6X0120.504.50-5.50
2X2019/0.190.900.3016X6X0120.505.00-6.00
2X1819/0.2351.170.3016X6X0120.505.30-6.30
3X2219/0.150.750.3016X6X0120.504.50-5.50
3X2019/0.190.900.3016X6X0120.505.00-6.00
3X1819/0.2351.170.3016X7X0120.505.30-6.30
4X2219/0.150.750.3016X7X0120.604.50-6.00
4X2019/0.190.900.3016X7X0120.605.00-6.50
4X1819/0.2351.170.3024X6X0.120.605.30-7.00
5X2219/0.150.750.3016X7X0120.605.00-6.50
5X2019/0.190.900.3016X7X0120.605.50-7.00
5X1819/0.2351.170.3024X6X0.120.606.00-7.50
6X2219/0.150.750.3016X8X0120.605.5-7.00
6X2019/0.190.900.3016X8X0120.606.00-7.50
6X1819/0.2351.170.3024X8X0.120.706.50-8.00
7X2219/0.150.750.3016X8X0120.706.00-7.50
7X2019/0.190.900.3016X8X0120.706.50-8.00
7X1819/0.2351.170.3024X10X0.120.807.00-8.50
Company Profile
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 2 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 3
Our Product Range
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 4
Applications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 5
Global Clients
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 6
Industry Exhibitions
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 7
Certifications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen with production bases in Dongguan and Jingzhou, China.
  • What We Provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash.
