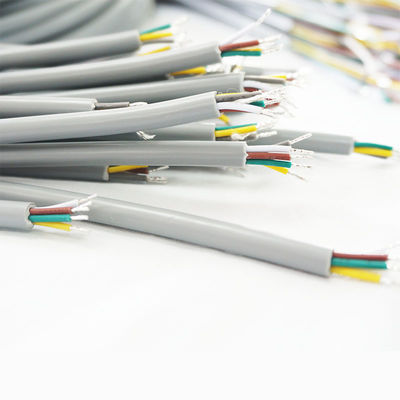

UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor

  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
Luogo di origine Guangdong, Cina
Marca MYSUN
Numero di modello UL1858
Quantità di ordine minimo 3050

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale conduttore Rame in scatola Opzioni di diametro 2X22AWG, 2X20AWG, 2X18AWG, 3X22AWG, 3X20AWG, 3X18AWG, 4X20AWG, 4X18AWG
Materiale isolante Gomma Tensione nominale 600 v
Tipo di conduttore Solido Forma Girare
Valutazione della temperatura 200 ° C. Tipo di isolamento silicone
Opzioni del conduttore Rame stagnato/Rame argentato Spessore nominale 0,33 millimetri
Spessore dell'indumento 1,00 mm Gamma di diametri 4,5-8,00 mm
Costruzione 19 fili per conduttore Diametro del filo 0,15-0,235 mm
Lunghezza 305 metri / 1.000 piedi
Evidenziare

Silicone Rubber Jacket FEP Wire

,

Industrial Power Silicone Insulated Wire

,

Tinned Copper High Temperature Wire
Lasciate un messaggio
Descrizione di prodotto

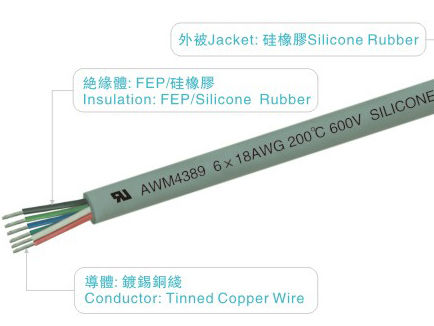

UL4389 FEP Wire 600V 200°C Silicone Rubber Jacket High Temperature Wire for Industrial Power
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 0 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 1

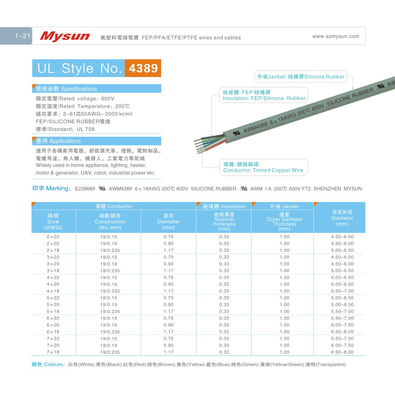

Product Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Out Garment Thickness (mm) Diameter (mm)
2x22 19/0.15 0.75 0.33 1.00 4.5-6.00
2x20 19/0.19 0.90 0.33 1.00 4.5-6.00
2x18 19/0.235 1.17 0.33 1.00 5.00-6.50
3x22 19/0.15 0.75 0.33 1.00 4.5-6.00
3x20 19/0.19 0.90 0.33 1.00 4.5-6.00
3x18 19/0.235 1.17 0.33 1.00 5.00-6.50
4x22 19/0.15 0.75 0.33 1.00 5.0-6.50
4x20 19/0.19 0.90 0.33 1.00 5.0-6.50
4x18 19/0.235 1.17 0.33 1.00 5.50-7.00
5x22 19/0.15 0.75 0.33 1.00 5.0-6.50
5x20 19/0.19 0.90 0.33 1.00 5.0-6.50
5x18 19/0.235 1.17 0.33 1.00 5.50-7.00
6x22 19/0.15 0.75 0.33 1.00 5.5-7.00
6x20 19/0.19 0.90 0.33 1.00 6.00-7.50
6x18 19/0.235 1.17 0.33 1.00 6.50-8.00
7x22 19/0.15 0.75 0.33 1.00 5.5-7.00
7x20 19/0.19 0.90 0.33 1.00 6.00-7.50
7x18 19/0.235 1.17 0.33 1.00 6.50-8.00

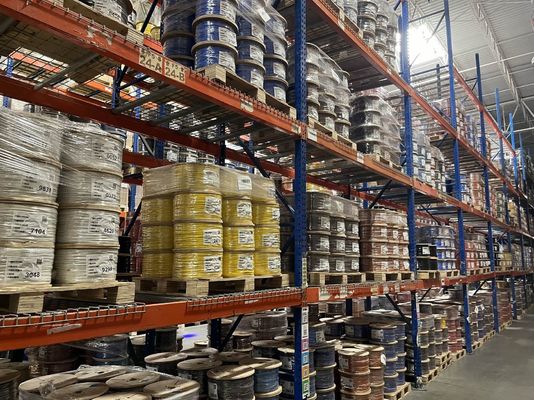

Company Profile
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 2 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 3

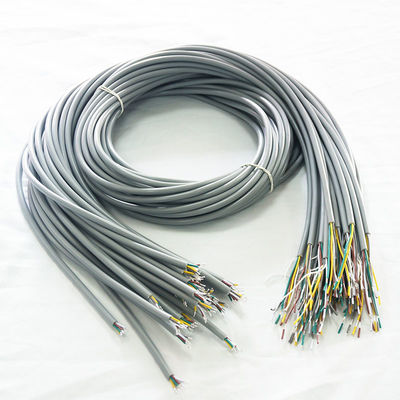

Our Products
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 4
Applications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 5
Our Overseas Clients
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 6
Exhibition
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 7
Certifications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 8
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
Free Sample
Competitive Price
High Quality Standard
Customized Service
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
