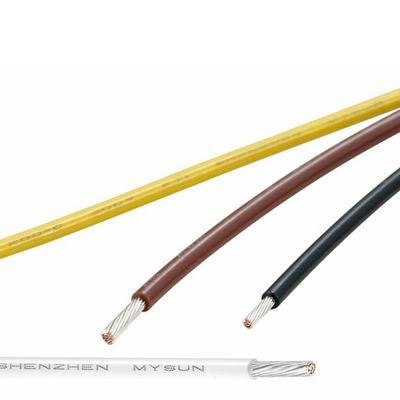

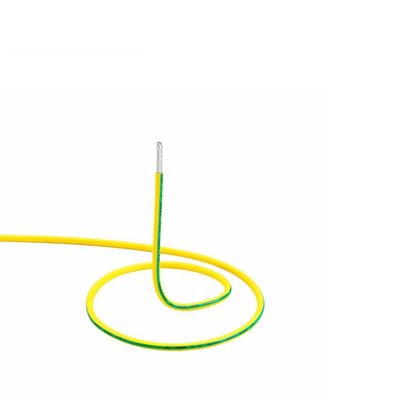

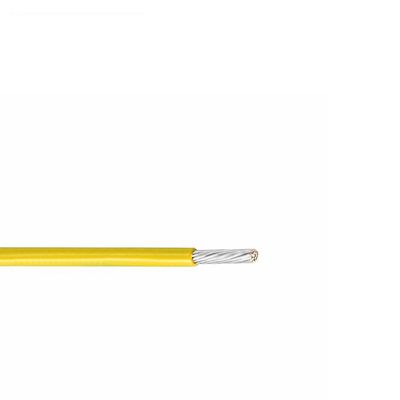

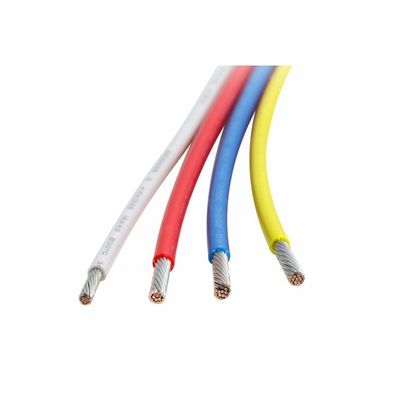

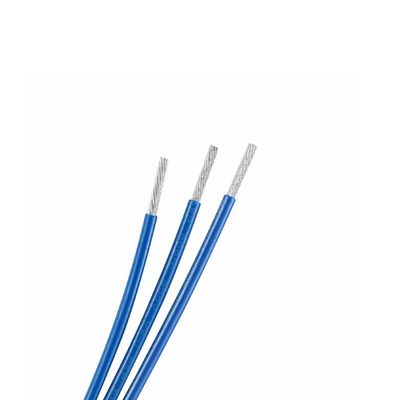

UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment

  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
Luogo di origine Guangdong, Cina
Marca MYSUN
Numero di modello UL1858
Quantità di ordine minimo 3050

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale conduttore Rame in scatola Diametro 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
Materiale isolante FEP Tensione nominale 30V
Tipo di conduttore Solido Forma Girare
Temperatura 105°C Tipo Isolato
Lunghezza dell'unità 305/1000 Resistenza al conduttore massima 14,6 Ω/KM (16 AWG), 23,2 Ω/KM (18 AWG), 36,7 Ω/KM (20 AWG), 59,4 Ω/KM (22 AWG), 94,2 Ω/KM (24 AWG),
Costruzione del conduttore 19/0,30 (16 AWG), 19/0,235 (18 AWG), 19/0,19 (20 AWG), 19/0,15 (22 AWG), 7/0,20 (24 AWG), 7/0,16 (26 Spessore dell'isolamento 0,300 mm (16-22 AWG), 0,350 mm (14 AWG)
Diametro isolamento 2,09 mm (16 AWG), 1,79 mm (18 AWG), 1,52 mm (20 AWG), 1,37 mm (22 AWG), 1,21 mm (24 AWG), 1,08 mm (2 Diametro del conduttore 1,49 mm (16 AWG), 1,19 mm (18 AWG), 0,92 mm (20 AWG), 0,77 mm (22 AWG), 0,61 mm (24 AWG), 0,48 mm (2
Standard UL758
Evidenziare

30V Rated Voltage FEP Wire

,

105°C Temperature Rating UL1927 Wire

,

Class 2 Circuits Tefzel Insulated Wire
Lasciate un messaggio
Descrizione di prodotto
UL1927 FEP Wire 30V 105°C for Use in Class 2 Circuits of Electronic Equipment
Supplies Fortune 500 Companies - Top PFA Wire Supplier in China.
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 0 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 0
Specification
UL1927 UL1330 Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
32 7/0.08 0.24 0.200 0.64 563 610/2000
30 7/0.10 0.30 0.200 0.70 381 610/2000
28 7/0.127 0.38 0.250 0.88 239 610/2000
26 7/0.16 0.48 0.300 1.08 150 610/2000
24 7/0.20 0.61 0.300 1.21 94.2 610/2000
22 19/0.15 0.77 0.300 1.37 59.4 305/1000
20 19/0.19 0.92 0.300 1.52 36.7 305/1000
18 19/0.235 1.19 0.300 1.79 23.2 305/1000
16 19/0.30 1.49 0.300 2.09 14.6 305/1000
14 19/0.37 1.87 0.350 2.57 8.78 305/1000
Click Contact us Get the Best Quote
Company Profile
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 2 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 2 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 4 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 4
Our Products
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 6 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 6
Application
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 8 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 8
Our Overseas Clients
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 10 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 10
Exhibition
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 12 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 12
Certifications
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 14 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 14
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
