UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
Luogo di origine Guangdong, Cina
Marca MYSUN
Numero di modello UL8298
Quantità di ordine minimo 3050

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale conduttore Rame in scatola Diametro 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
Materiale isolante PFA Tensione nominale 450 V, 750 V
Tipo di conduttore Solido Forma Girare
Valutazione della temperatura 250 ℃ Resistenza del conduttore 59,78 Ω/KM (0,34 mm2), 40,1 Ω/KM (0,50 mm2), 26,7 Ω/KM (0,75 mm2), 20 Ω/KM (1,00 mm2), 14,35 Ω/KM (1
Lunghezza dell'unità 305/1000 m/ft Costruzione del conduttore 7/0,15 (0,34 mm2), 7/0,19 (0,50 mm2), 19/0,23 (0,75 mm2), 19/0,26 (1,00 mm2), 19/0,29 (1,25 mm2), 19
Spessore dell'isolamento 0,305 mm (0,34-1,50 mm2), 0,350 mm (2,00-2,50 mm2) Diametro del filo 1,36 mm (0,34 mm2), 1,56 mm (0,50 mm2), 1,78 mm (0,75 mm2), 1,91 mm (1,00 mm2), 2,16 mm (1,25 mm2),
Diametro del conduttore 0,75 mm (0,34 mm2), 0,95 mm (0,50 mm2), 1,17 mm (0,75 mm2), 1,31 mm (1,00 mm2), 1,46 mm (1,25 mm2), Valutazione della tensione 450/750v
Tipo di isolamento PFA
Evidenziare

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
Lasciate un messaggio
Descrizione di prodotto

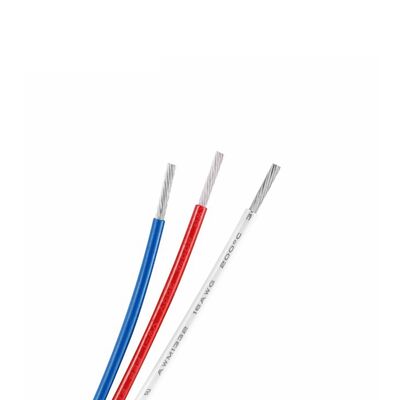

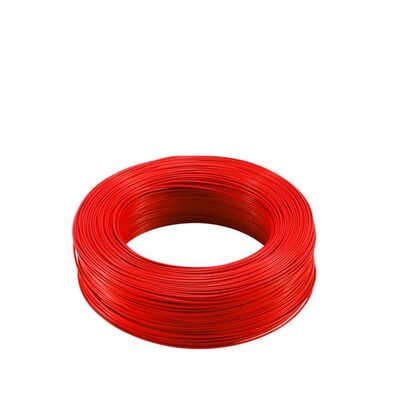

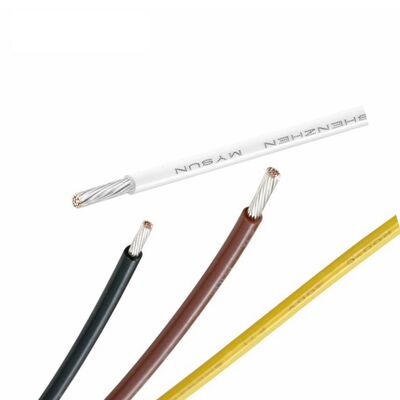

UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3
Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
