UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V

  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
  • UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
Place of Origin Guangdong, China
Marca MYSUN
Certificazione UL Certification
Model Number E239689
Minimum Order Quantity 500
Prezzo $1-3

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Temperature rating 200C Shape ROUND
Diameter 4/0AWG Conductor material Tinned Copper wire
Insulation material Silicone Rubber Rated voltage 600v
Conductor type tinned copper Conductor size 21338/0.08
Conductor diameter 15.2±0.8mm Insulation thickness 2.03mm
Overall diameter 20.5±1.0mm Wire gauge 4/0AWG
Strand count 21338 Strand diameter 0.08mm
Jacket material Silicone rubber
Evidenziare

4/0AWG silicone rubber wire

,

heat-resistant silicone insulated wire

,

600V high-temperature silicone wire
Lasciate un messaggio
Descrizione di prodotto
UL3512 4/0AWG Super Soft Silicone Wire 21338/0.08 Heat-resistant Energy Storage Cable
Product Specifications
Temperature Rating 200°C
Shape Round
Diameter 4/0AWG
Type Insulated
Applications Home appliances, lighting, heaters, motors & generators
Conductor Material Tinned Copper Wire
Insulation Material Silicone Rubber
Rated Voltage 600V
Standard UL 758
Color Options Customizable
Product Description
Premium silicone rubber wire supplier for Fortune 500 companies and industrial applications worldwide.
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 0
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 1
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
4/0 21338/0.08 15.2±0.8 2.03 20.5±1.0
3/0 16921/0.08 14.50±0.70 2.03 18.50±0.60
2/0 13422/0.08 12.3±0.8 2.03 16.3±0.7
1/0 10647/0.08 11.0±0.70 2.03 15.0±0.6
1 8842/0.08 10.0±0.6 2.03 14.0±0.6
Contact Us for Custom Quote
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 2
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 3
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 4
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 5
Applications
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 6
Certifications
UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V 7
Frequently Asked Questions
Who are we?
We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
What can we provide?

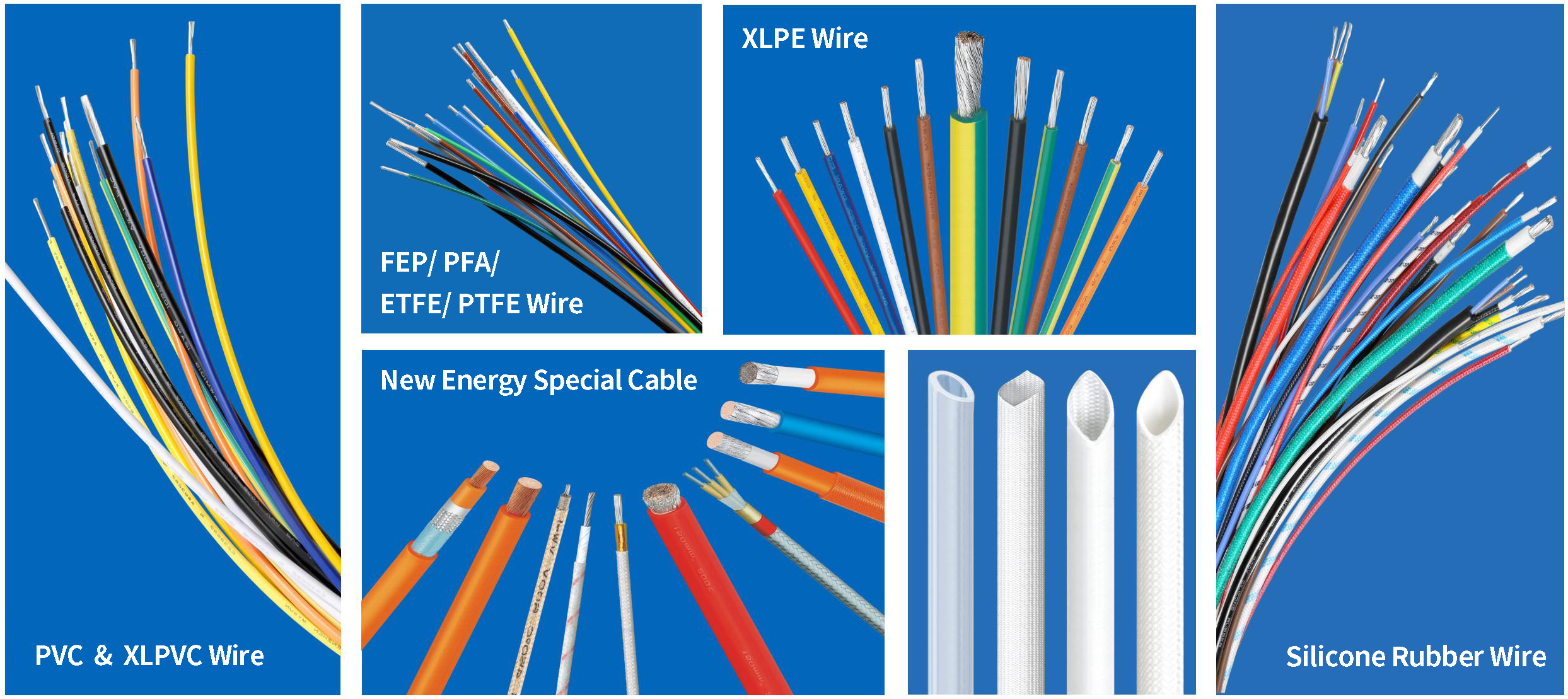

We specialize in high-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
Why choose us?
We offer free samples, competitive pricing, high quality standards, and customized services to meet your specific requirements.
