UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery

  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
  • UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery
Luogo di origine Guangdong, Cina
Marca MYSUN
Certificazione UL RoHS CE CCC cUL
Numero di modello UL3512
Quantità di ordine minimo 3050
Dettagli
Materiale conduttore Filo di rame stagnato Opzioni diametro Da 1 AWG a 4/0 AWG, da 25 mm2 a 400 mm2
Materiale isolante Silicone Tensione nominale 600v
Tipo di conduttore Incagliato Forma Girare
valutazione della temperatura 200c Tipo Isolato
Core di conduttore Rame stagnato Materiale della giacca Silicone
Opzioni colore Opzionale Spessore nominale Da 0,69 mm a 1,83 mm
Gamma di diametri Da 0,48 mm a 19,5 mm Costruzione da 65/0,08 a 21338/0,08
Standard UL758
Evidenziare

200C High Temperature Battery Cable

,

600V Rated Voltage Silicone Wire

,

Super Soft Silicone UL3512 Wire
Lasciate un messaggio
Descrizione di prodotto

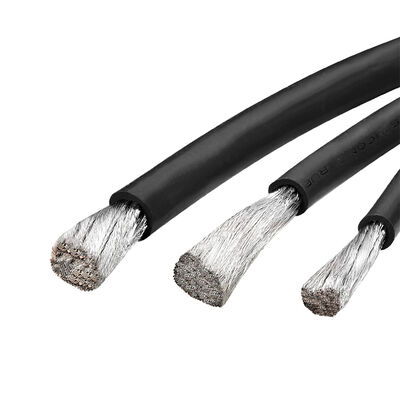

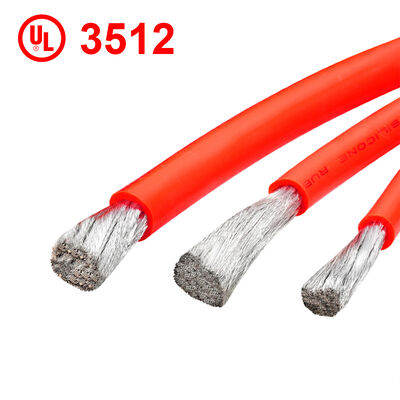

UL3512 Battery Cable - High Temperature Super Soft Silicone Wire
UL3512 certified battery cable rated for 200°C and 600V, available in 2AWG, 4AWG, 6AWG, and 8AWG sizes. Ideal for stackable battery applications requiring superior flexibility and high temperature resistance.
Partnership Opportunity
Seeking Country Agents for a Win-Win Partnership
Product Specifications
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 0
UL3512 - 0.08 Super Soft Silicone Wire
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
2265/0.080.480.692.40±0.1
20104/0.080.600.692.55±0.1
18164/0.080.780.692.80±0.1
16261/0.081.170.693.10±0.1
14415/0.081.470.693.70±0.1
12660/0.082.100.694.30±0.1
101050/0.082.701.025.40±0.2
91320/0.083.4±0.301.156.10±0.3
81650/0.084.0±0.301.377.00±0.3
72100/0.084.80±0.31.377.90±0.3
62648/0.085.30±0.301.378.30±0.4
53338/0.086.10±0.41.379.20±0.4
44210/0.086.80±0.51.379.90±0.4
35309/0.087.70±0.51.3710.9±0.5
26692/0.088.70±0.51.3711.8±0.5
18842/0.089.70±0.51.8314.0±0.6
1/010647/0.0811±0.51.8315.0±0.6
2/013422/0.0812±0.51.8316.3±0.7
3/016921/0.0814.5±0.51.8318.5±0.8
4/021338/0.0815.5±051.8319.5±1.0
Our Products
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 1
Applications
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 2
Company Profile
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 3 UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 4
Our Overseas Clients
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 5
Exhibition
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 6
Certifications
UL3512 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Stackable Battery 7
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquarters in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
