200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications

  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
  • 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
Luogo di origine Guangdong, Cina
Marca MYSUN
Quantità di ordine minimo 200
Dettagli
Materiale conduttore Rame Diametro 1 AWG, 2 AWG, 6 AWG, 4 AWG, 8 AWG, 10 AWG, 14 AWG, 12 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Materiale isolante Silicone Tensione nominale 600 V
Tipo di conduttore Incagliato Tipo Isolato
temperatura nominale -80°C ~ +200°C Conduttore Filo stagnato
Isolamento Gomma siliconica Resistenza al conduttore massima 143 Ω/KM (26 AWG), 89,3 Ω/KM (24 AWG), 56,4 Ω/KM (22 AWG), 35,2 Ω/KM (20 AWG), 22,2 Ω/KM (18 AWG), 1
Lunghezza dell'unità 305/1000 M/Piede (26 AWG) Costruzione del conduttore 7/0,16 (26 AWG), 7/0,20 (24 AWG), 7/0,254 (22 AWG), 7/0,31 (20 AWG), 7/0,39 (18 AWG), 7/0,49 (16 AWG
Spessore nominale 0,78 mm Diametro isolamento 2,04 mm (26 AWG), 2,17 mm (24 AWG), 2,33 mm (22 AWG), 2,5 mm (20 AWG), 2,75 mm (18 AWG), 3,05 mm (16
Colore Tutti i colori
Evidenziare

200°C Rated Temperature Battery Cable

,

UL Standard Silicone Wire

,

Super Soft UL758 Cable
Lasciate un messaggio
Descrizione di prodotto

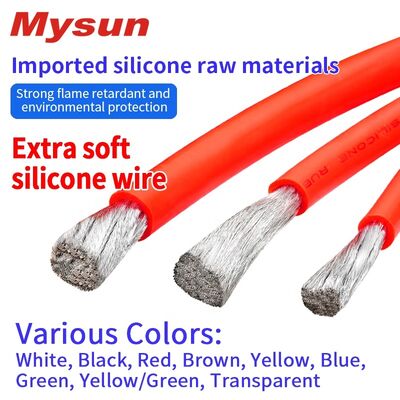

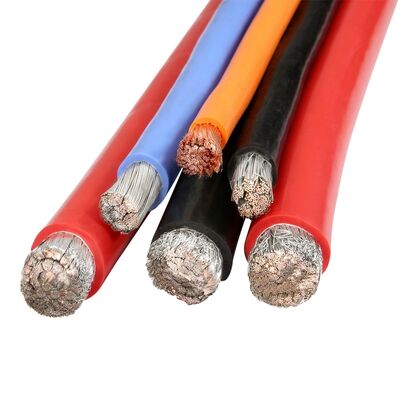

200 Degree UL Standard Super Soft Battery Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 0
UL3135 Technical Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M)/(Ft)
267/0.160.480.782.04143305/1000
247/0.200.610.782.1789.3
227/0.2540.770.782.3356.4
207/0.310.940.782.535.2
187/0.391.190.782.7522.2
167/0.491.490.783.0514
2411/0.160.610.782.1789.3
2217/0.160.760.782.3256.4
2026/0.160.940.782.535.2
1841/0.161.180.782.7422.2
1626/0.2541.490.783.0514
1441/0.2541.870.783.438.78
1219/0.472.630.783.925.53
0.30mm²12/0.180.710.782.2759.78
0.50mm²20/0.180.920.782.4840.1
0.75mm²30/0.181.130.782.6926.7
1.00mm²40/0.181.310.782.8720
1.25mm²50/0.181.460.783.0214.35
2.00mm²41/0.2541.870.783.438.78
2.50mm²50/0.2542.080.783.647.16
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 1 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 2 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 3 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 4 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 5 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 6

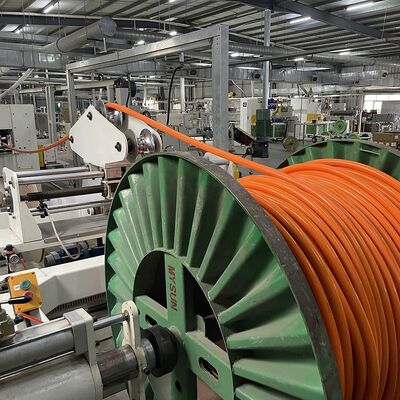

Company Profile
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 7 200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 8
Our Overseas Clients
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 9
Exhibition
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 10
Certifications
200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications 11
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
